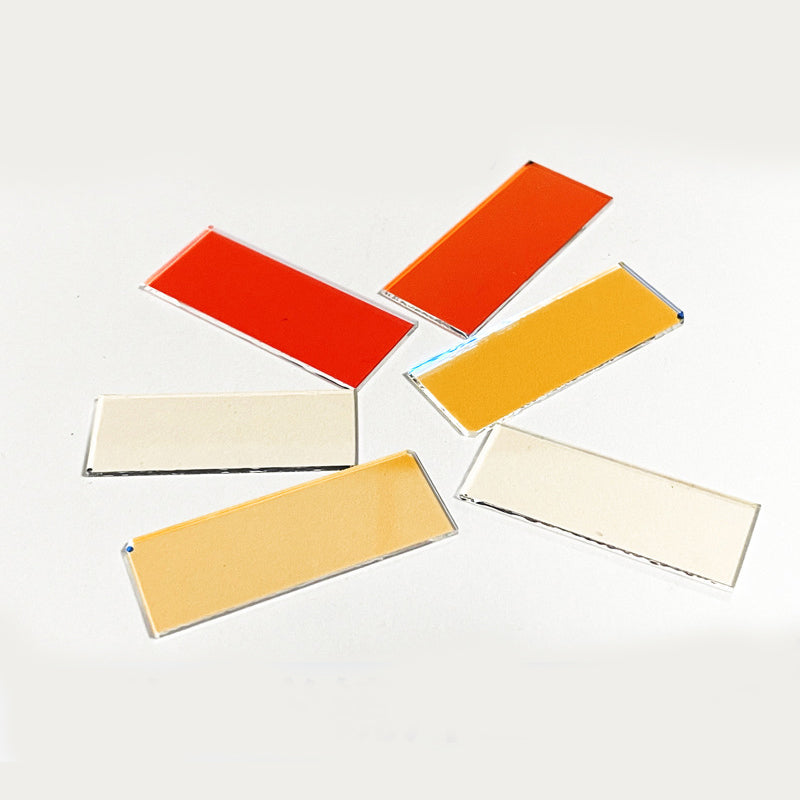

Long pass filters are precision optical components whose performance is defined by a range of technical specifications. For engineers, researchers, and procurement professionals, understanding these specifications is essential for selecting the right filter and predicting its behavior in actual optical systems. This article provides a detailed examination of key performance metrics, their practical implications, and how they interact with system parameters.
Cut-on Wavelength
The cut-on wavelength is the defining characteristic of a long pass filter. It is the wavelength at which transmittance reaches 50% of its maximum value, marking the boundary between the rejection region and the transmission region.
In practice, the cut-on wavelength determines which spectral components are blocked and which are passed. For example, an LP510 filter transmits wavelengths above 510nm and blocks those below. The positioning of this edge is critical for applications where the signal and unwanted light are spectrally close, such as in multi-color fluorescence imaging or Raman spectroscopy.
The relationship between the cut-on wavelength and the angle of incidence is governed by the interference equations of the dielectric coatings. As the angle of incidence increases, the effective optical path length through the coating layers changes, causing the cut-on wavelength to shift toward shorter wavelengths. This angular dependence follows the relationship λ(θ) = λ(0) × √(1 - (sinθ/n_eff)²), where n_eff is the effective refractive index of the coating. This shift must be accounted for in systems operating at off-normal incidence.
Transition Width and Slope
The transition region is the spectral interval between the blocking band and the passband. The steepness of this transition is quantified by the transition width, typically defined as the wavelength difference between 5% and 80% transmittance points or between 10% and 90% points.
Steep transition slopes provide superior spectral separation, allowing adjacent spectral features to be distinguished without crosstalk. This is particularly important in applications such as flow cytometry where multiple fluorescence channels must be isolated simultaneously. Advanced filters can achieve transition widths of less than 5nm in the visible spectrum.
The transition slope is determined by the number of coating layers and the refractive index contrast between alternating materials. More layers generally produce steeper slopes but also increase the cost and complexity of manufacturing.
Blocking Depth
Blocking depth measures the effectiveness of the filter in rejecting unwanted wavelengths. It is expressed in optical density (OD) units, where OD1 corresponds to 10% transmission, OD2 corresponds to 1%, OD3 corresponds to 0.1%, and so on.
For most analytical applications, a blocking depth of OD4 or OD5 is required to ensure that unwanted light does not interfere with the signal of interest. In Raman spectroscopy, where the Rayleigh scattering signal can be orders of magnitude stronger than the Raman signal, blocking depths of OD6 or higher may be necessary.
The blocking range specifies the spectral interval over which this rejection is maintained. Some filters provide deep blocking across a broad range, while others may have regions of reduced rejection, referred to as "leakage windows." Understanding the blocking range is essential to ensure that no out-of-band wavelengths reach the detector.
Transmittance in the Passband
Passband transmittance determines how efficiently the filter delivers the desired wavelengths to the system. Typical high-performance long pass filters achieve average transmittance exceeding 90% across the passband, with peak values approaching 98%.
Transmittance is not constant across the passband and may exhibit ripple due to interference effects within the coating stack. This ripple can affect measurement accuracy in applications requiring flat spectral response. For such applications, filters with optimized designs that minimize ripple are available.
The transmittance also depends on the polarization state of the incident light. For s-polarized and p-polarized light, the coating layers have different effective refractive indices, resulting in different spectral responses. In systems using polarized light or requiring polarization-independent performance, this effect must be considered.
Surface Quality
Surface quality refers to the physical condition of the filter surfaces and is specified by scratch-dig standards. The first number indicates the maximum allowable scratch width, while the second number indicates the maximum allowable dig diameter. Typical specifications include 60-40 for general applications and 40-20 for more demanding applications.
Surface quality affects both scattering and damage threshold. Scratches and digs scatter light, reducing transmittance and increasing stray light. In imaging systems, scattering can degrade contrast and resolution. In high-power laser applications, surface defects can serve as initiation sites for coating damage.
Thickness and Flatness
Substrate thickness influences the filter's mechanical stability and thermal behavior. Thicker substrates are more robust and less prone to deformation but introduce more material absorption and may affect transmission in the infrared where substrate absorption becomes significant.
Surface flatness, specified in terms of waves or fringes, affects the wavefront distortion introduced by the filter. In precision imaging and laser applications, maintaining wavefront quality is essential for preserving image resolution and beam quality.
Environmental and Durability Specifications
Environmental specifications describe the filter's ability to maintain performance under various conditions. Temperature stability indicates the sensitivity of the cut-on wavelength to temperature changes, typically expressed in nm/°C. For precision applications, thermally stable designs are available.
Humidity resistance and adhesion testing verify that the coating layers remain intact and adherent under damp conditions. The MIL-C-48497 standard provides common test procedures for adhesion, humidity, and temperature cycling.
Application-Specific Considerations
Different applications impose different priorities on these specifications. For fluorescence microscopy, blocking depth and transition steepness are paramount. For spectroscopy, transmittance flatness across the passband is critical. For high-power laser systems, damage threshold and thermal stability take precedence.
Understanding the trade-offs between these specifications allows for optimal filter selection. A filter with steeper slope will generally have lower transmittance or higher cost. A filter with deeper blocking may have a narrower useful blocking range. Balancing these factors against system requirements and budget constraints is the key to successful filter integration.
