Optical filters are fundamental tools for controlling light in scientific, industrial, and medical applications. Among the most commonly used types are long pass filters, short pass filters, and bandpass filters. While they may appear similar at first glance, each serves a distinct purpose and is suited to different applications. Understanding the differences between these filter types is essential for selecting the right component for your optical system.
This article provides a clear comparison of these three filter categories, explaining their operating principles, typical applications, and the key factors to consider when choosing between them.

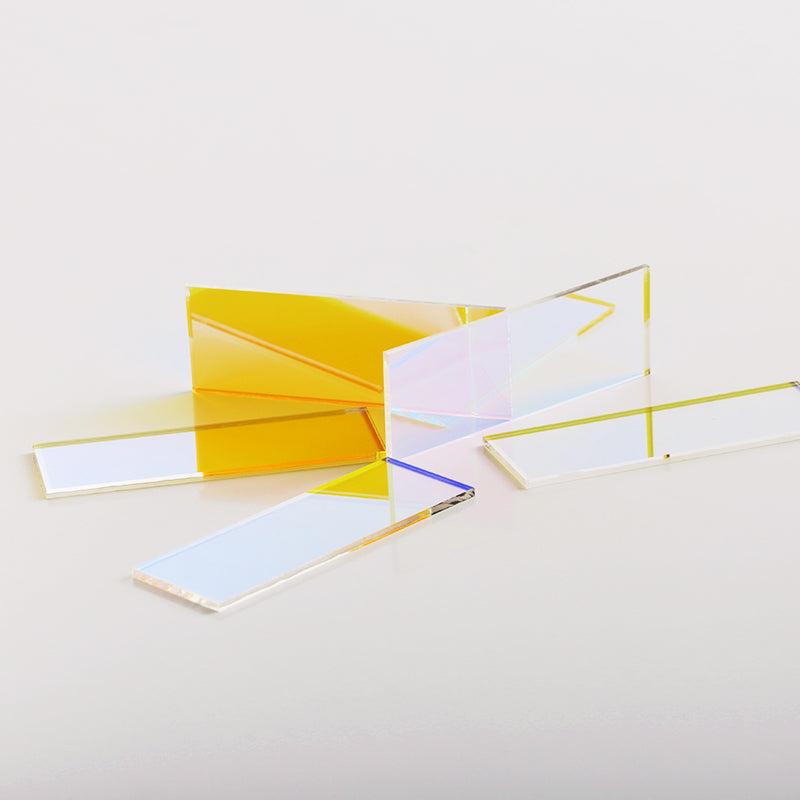

Long Pass Filters
A long pass filter transmits wavelengths longer than a specified cutoff wavelength and blocks shorter wavelengths. It is characterized by a single transition edge, with the passband extending into the infrared or beyond. The cutoff point determines which wavelengths are transmitted and which are rejected.
Operating Principle
Long pass filters use dielectric multilayer coatings that create interference effects at the transition edge. Below the cut-on wavelength, destructive interference prevents transmission. Above it, constructive interference allows light to pass through. This interference-based approach provides steep transition slopes and high blocking depth.
Typical Applications
-
Fluorescence microscopy for separating excitation and emission light
-
Raman spectroscopy for blocking Rayleigh scattering
-
IPL and laser hair removal systems for wavelength selection
-
Machine vision for enhanced contrast using near-infrared illumination
-
Night vision and surveillance systems
Advantages
-
Simple spectral selection with a single edge
-
High transmission efficiency across broad passbands
-
Deep blocking of shorter wavelengths
-
Suitable for both visible and infrared applications
Limitations
-
Does not provide selective transmission of a narrow band
-
Requires sufficient separation between blocked and passed wavelengths
-
Angular sensitivity can shift the cutoff wavelength in non-collimated systems
Short Pass Filters
A short pass filter operates in the opposite manner. It transmits wavelengths shorter than a specified cutoff wavelength and blocks longer wavelengths. Like long pass filters, it features a single transition edge but with the passband located on the short-wavelength side.
Operating Principle
Short pass filters also employ dielectric multilayer coatings designed to create a spectral transition at the cutoff point. The coating layers are optimized to reflect longer wavelengths while allowing shorter wavelengths to pass. Advanced designs can achieve steep transition slopes comparable to long pass filters.
Typical Applications
-
Blocking infrared radiation in thermal imaging systems
-
Selecting ultraviolet or blue excitation light in fluorescence applications
-
Solar observation and astronomy for blocking heat while passing visible light
-
Color correction in lighting and display systems
Advantages
-
Efficient transmission of ultraviolet and visible light
-
Effective blocking of infrared wavelengths
-
Single-edge selectivity similar to long pass filters
Limitations
-
Not suitable for isolating mid-range spectral bands
-
Can suffer from thermal drift in infrared-blocking applications
-
Substrate absorption may limit ultraviolet transmission in some designs
Bandpass Filters
A bandpass filter transmits a narrow range of wavelengths while blocking both shorter and longer wavelengths. Unlike long pass and short pass filters, which have a single transition edge, bandpass filters have two transition edges. The transmitted band can be narrow or wide depending on the design.
Operating Principle
Bandpass filters are constructed with multiple cavity structures that create a transmission window at the desired wavelength. The central wavelength defines the peak transmission, while the bandwidth determines the range of wavelengths that pass through. The blocking regions on both sides are achieved through additional coating layers that provide rejection.
Typical Applications
-
Selecting specific laser lines in fluorescence microscopy
-
Isolating emission bands in multi-color imaging
-
Spectral analysis in spectroscopy and colorimetry
-
Optical communication for dense wavelength division multiplexing
-
Biomedical instrumentation such as flow cytometry
Advantages
-
Provides precise spectral selection
-
Available in narrow and wide bandwidth configurations
-
High peak transmittance with deep blocking on both sides
Limitations
-
More complex and expensive to manufacture
-
Multiple transmission peaks may occur at harmonics
-
Performance can degrade with temperature and angle variations
-
Lower peak transmittance compared to edge filters in some designs
Key Comparison Table
| Feature | Long Pass Filter | Short Pass Filter | Bandpass Filter |
|---|---|---|---|
| Transmitted wavelengths | Longer than cutoff | Shorter than cutoff | Specific band only |
| Blocked wavelengths | Shorter than cutoff | Longer than cutoff | All others outside band |
| Number of edges | One | One | Two |
| Typical transmittance | >90% | >85% | >80% |
| Primary applications | Separation, blocking | IR rejection, UV selection | Wavelength selection, imaging |
| Relative cost | Low to moderate | Moderate | Moderate to high |
How to Choose the Right Filter
The choice between long pass, short pass, and bandpass filters depends on your specific application requirements.
When to Choose a Long Pass Filter
Choose a long pass filter when you need to pass all wavelengths above a certain threshold while rejecting those below it. This is common in fluorescence microscopy, where the excitation light is blocked and the emission signal is passed. Long pass filters are also ideal for applications requiring broad spectral coverage from visible to near-infrared, such as night vision and machine vision.
When to Choose a Short Pass Filter
Choose a short pass filter when you need to pass shorter wavelengths while blocking longer ones. This is often required to remove infrared light from thermal sources or to isolate ultraviolet excitation in fluorescence applications. Short pass filters are also used in astronomy to block heat while passing visible light.
When to Choose a Bandpass Filter
Choose a bandpass filter when you need to isolate a specific spectral band and reject everything else. This is essential for applications where only a narrow range of wavelengths is of interest, such as single-color fluorescence imaging, laser line selection, or dense wavelength division multiplexing in optical communications. Bandpass filters are preferred when both short and long wavelength interferences are present.
Common Selection Mistakes
Using a long pass filter when a bandpass filter is required: If your signal is broad and both short and long wavelength interference exists, a long pass filter will not reject long wavelengths. A bandpass filter provides dual-sided blocking.
Using a bandpass filter when an edge filter would suffice: Bandpass filters are more expensive and complex. If a single-edge separation is all that is needed, a long pass or short pass filter is more cost-effective.
Ignoring spectral overlap: Ensure that the transition edge or bandwidth is chosen to avoid overlap with interfering wavelengths. Check the complete blocking curve rather than focusing only on the transmission region.
Combining Multiple Filters
In many advanced optical systems, combinations of filters are used to achieve spectral control that a single filter cannot provide. For example, a long pass filter and a short pass filter can be placed in series to create a custom bandpass window. This approach is often used in multi-color imaging and spectroscopic applications where flexibility is required.
However, combining filters increases optical loss, introduces surface reflections, and may affect system alignment. The combined performance must be carefully calculated, and the total transmittance is the product of the individual transmittance values.
Conclusion
Long pass, short pass, and bandpass filters each serve distinct roles in optical systems. Long pass filters are ideal for applications requiring single-edge separation, short pass filters are suited for infrared rejection and ultraviolet selection, and bandpass filters provide precise spectral selection. Understanding these differences and evaluating your specific application requirements will guide you to the right choice. In many cases, consulting with an optical engineer or filter specialist can help ensure optimal performance and cost-effectiveness.
