The cut-on wavelength is the single most important specification when selecting a long pass filter. It determines exactly which wavelengths reach your detector and which are blocked, directly impacting measurement accuracy, image quality, and system performance. Choosing the wrong cut-on wavelength can render expensive optical systems ineffective, while the right choice enables clear signal detection and reliable results.
This guide focuses specifically on how to select the optimal cut-on wavelength for your application, covering the key factors that influence this decision and common mistakes to avoid.
Understanding the Cut-on Wavelength

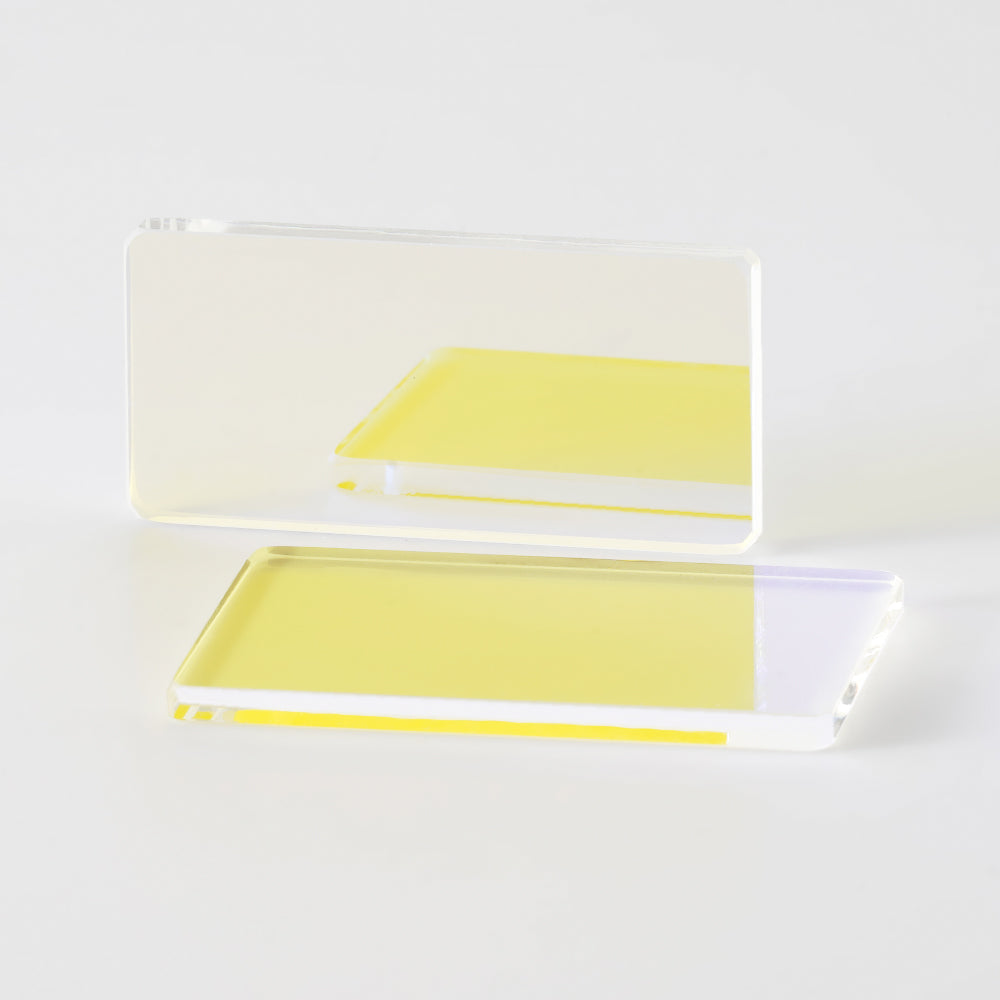

The cut-on wavelength is defined as the point where the filter transitions from blocking to transmitting, typically measured at 50% of peak transmittance. For example, an LP510 filter begins transmitting at 510nm, meaning it blocks all wavelengths below 510nm and passes those above.
This transition is not instantaneous but occurs over a spectral interval known as the transition width. For most applications, the effective cutoff is considered to be the 50% point, though in some cases the 5% or 90% points may be more relevant.
Key Factors in Selecting Cut-on Wavelength
1. Know Your Signal and Noise Spectra
The most fundamental step is understanding the spectral characteristics of both your desired signal and the unwanted light you need to reject. Plot the emission spectrum of your signal source and the spectral distribution of potential interferences.
For fluorescence applications, the cut-on wavelength should be positioned between the excitation peak and the emission peak. For example, if the excitation wavelength is 488nm and the emission peak is 520nm, a cut-on wavelength around 500nm would block the excitation light while allowing most of the emission signal to pass.
The separation between the cut-on wavelength and the signal peak determines the transmission efficiency. A general rule is to place the cut-on at least 20nm below the shortest signal wavelength of interest to avoid attenuating the signal edge.
2. Account for Angular Effects
In many optical systems, light does not strike the filter at normal incidence. As the angle of incidence increases, the cut-on wavelength shifts toward shorter wavelengths. This shift follows the relationship: λ(θ) = λ(0) × √(1 - (sinθ/n_eff)²).
At a 15-degree incidence angle, the shift is typically 10-15nm toward shorter wavelengths. At 45 degrees, the shift can exceed 50nm. For systems using non-collimated light or working at significant angles, this blue shift must be accounted for in the filter selection.
If your system operates at a fixed non-normal angle, simply select a filter with a higher nominal cut-on wavelength to compensate. For systems with variable angles, consider filters designed for reduced angular sensitivity.
3. Consider Light Source Characteristics
The spectral output of your light source influences the choice of cut-on wavelength. If using a broadband source such as a halogen lamp or LED, there will be significant light output both above and below the cut-on. The filter selection must balance the need for signal transmission against the risk of short-wavelength leakage.
For laser-based systems, the cut-on wavelength should be sufficiently above the laser line to ensure complete rejection. For a 532nm laser, a cut-on of 550nm or higher provides adequate separation while allowing fluorescence signals above this threshold to pass.
4. Evaluate Detector Sensitivity
The spectral response of your detector affects how much signal actually reaches the readout. Photomultiplier tubes have excellent sensitivity in the visible but fall off in the near-infrared. CCD and CMOS sensors have varying quantum efficiency across their response range.
Choose a cut-on wavelength that aligns with both the signal spectrum and the detector sensitivity. There is no benefit to passing wavelengths that your detector cannot efficiently capture, as they only contribute to noise.
5. Assess Environmental Stability Requirements
Temperature variations cause the cut-on wavelength to shift. The temperature coefficient typically ranges from 0.01 to 0.05 nm/°C for standard filters. Over a 20°C temperature range, this represents a shift of 0.2-1.0nm, which is negligible for most applications.
However, in precision spectroscopy or applications operating in extreme environments, this shift becomes significant. Consider specifying thermally stable filters or temperature-controlled environments for these cases.
Common Selection Mistakes to Avoid
Selecting the cut-on wavelength too close to the signal: This results in signal attenuation at the spectral edges, reducing measurement accuracy and sensitivity. Always allow a safety margin of at least 10-20nm.
Ignoring the emission spectral width: Signals are rarely monochromatic. Account for the full width of the emission spectrum, not just the peak wavelength.
Overlooking source and detector variations: Different units of the same light source or detector model may have slightly different spectral characteristics. Allow tolerance margins in your wavelength selection.
Forgetting to verify blocking range: Some filters may have reduced blocking in certain spectral regions. Ensure the blocking range covers all wavelengths present in your system.
Practical Selection Steps
-
Step 1: Identify your signal wavelength range and the wavelengths to be blocked. Determine the shortest signal wavelength you need to detect.
-
Step 2: Calculate the required cut-on wavelength, adding a safety margin of 10-20nm below the shortest signal wavelength.
-
Step 3: Adjust for system angle of incidence. Add correction for blue shift at non-normal incidence.
-
Step 4: Consider temperature effects and add additional margin if needed.
-
Step 5: Review the complete filter specification, including transition width, blocking depth, and transmittance.
-
Step 6: Consult with optical engineers or filter manufacturers to verify the selection and explore available options.
Conclusion
Selecting the right cut-on wavelength is the foundation of successful long pass filter integration. By carefully considering signal and noise spectra, optical system geometry, and environmental factors, you can choose a filter that maximizes signal detection while minimizing interference. When in doubt, consult with optical experts who can provide guidance based on extensive measurement data and application experience.
